pio_stepper_lib

Raspberry PIO autonomous stepper motor driver
C++ library to run stepper motors in PIO state machines

• 4 motors can be controlled per PIO
• can be used with any stepper motor driver that supports STEP and DIR operation
• can handle as many commands as PIO FIFO accepts without waiting (default 8).
• each command can autonomously handle 2147483647 steps, and the spin direction
• can notify the calling program when a command has finished
• can report how many commands it processed

documentation:

1: intro, set up project and simple example
2: advanced example with notification
3: control multiple motors with 1 or more PIOs
4: understand the step frequency
5: simple ramp up and down

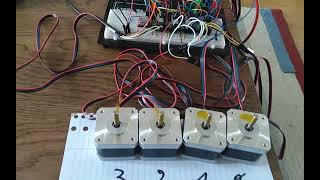

video: 4 motors running on 1 PIO. Consecutive and Concurrent

Example: motor runs a batch of 7 commands:

#include "hardware/pio.h"
import stepper; // PIO stepper lib

// pins
const uint dir = 4U; // implies that step is gpio 5
// config what PIO, SM and IRQ channel to use
const auto piostep = pio1;
const uint pio_irq = 0;
const uint sm = 2U;

const float clock_divider = 3; // works well for 8 microsteps

using motor_t = stepper::stepper_callback_controller;
motor_t motor1(piostep, sm);

void init_pio() {
    // program the pio used for the motors
    // do this only once per used pio
    motor_t::pio_program(piostep);

    // initialise and enable the motor state machine
    motor1.register_pio_interrupt(pio_irq, true);
    motor1.pio_init(dir, clock_divider);
    motor1.enable(true);
}

void on_complete(motor_t &stepper) {
    if (&motor1 == &stepper) {
        printf("motor1 executed command %d\n", motor1.commands());
    }
}

int main() {
    init_pio();

    std::array<stepper::command, 7> cmd{{
        {20, true},
        {20, false},
        {20, false},
        {40, false},
        {25, true},
        {35, true},
        {200, true}}
    };

    motor1.on_complete_callback(on_complete);

    motor1.set_delay(4300); // this is fast
    for(auto c : cmd) {
        motor1.take_steps(c);
    }
    while(motor1.commands() < cmd.size() ) {}

    return 0;
}

Adding the lib to your Raspberry Pico project

The repository has its own makefile. you add it by fetching from it in your CMakeFiles.txt. It is then available to your code as library stepper.

# your CMakeFiles.txt
# ...

include(FetchContent)
FetchContent_Declare(stepper
  GIT_REPOSITORY "https://github.com/jancumps/pio_stepper_lib.git"
  GIT_TAG "origin/main"
)
FetchContent_MakeAvailable(stepper)

# ...

# add stepper as a library to your executable
add_executable(your_stepper_project)
# ...
target_link_libraries(your_stepper_project
        pico_stdlib
        hardware_gpio
        stepper
)

That is all it takes to integrate this design in your project.

Other project considerations

On a RP2350 (Pico2), the SDK default setting for PICO_MAX_SHARED_IRQ_HANDLERS limits the number of interrupt/callback enabled motors you can use. When you have more than 4 interrupt/callback enabled motors in your project, override the SDK setting in your CMakeFiles.txt with the number of motors in your code. Add it before Pico SDK import.

add_compile_definitions(PICO_MAX_SHARED_IRQ_HANDLERS=10)

demo project that uses this lib:

Stepper Motor Control with Raspberry Pico PIO and DRV8711 driver
2 Stepper Motors on the same or different PIOs (example source)
Stepper Motor Control with Raspberry Pico PIO and A4988 driver

toolchain requirements:

• CMake 3.28 or higher
• GCC 14.2.1 or higher
• Pico C SDK 2.1.1
• tested with Pico 1 and Pico-W
